API Gateway vs Load Balancer in Microservices: Key Differences Explained
A practical comparison with real-world use cases, pros, cons, and architecture diagrams
[SPONSORED] From Figma to production-ready apps in minutes.
Enterprise UI development has a persistent translation problem: the gap between what design intends and what production code delivers. WaveMaker closes it.
Their design-to-code platform converts Figma designs to production apps within the constraints of your design system — deterministically, at scale. AI proposes. Your team validates. The system ships consistent code.
If your team spends weeks reconciling design intent with implementation, this is worth a look.
Hello folks, what is difference between API Gateway and Load balancer is one of the popular Microservice interview question and often asked to experienced Java developers during telephonic or face-to-face round.
Though, you must know what is API Gateway and load balancer is before you can talk about their differences. If you are new to these two terms or concepts then I suggest you to first watch this video on API Gateway from ByteByteGo to learn basics
And, this one to learn about Load balancers from Exponent, another great site and channel to learn system design concepts.
In the past, I have shared essential Microservices design principles and best practices as well popular Microservices design patterns and in this article, I will answer this question and also tell you key differences between them.
While, API Gateway and Load Balancer are both important components in microservices architecture, but they serve different purposes.
API Gateway acts as a single entry point for all API requests and provides features such as request routing, rate limiting, authentication, and API versioning and also hide the complexities of the underlying microservices from the client applications.
Load Balancer, on the other hand, is responsible for distributing incoming request across multiple instances of a microservice to improve availability, performance, and scalability. It helps to evenly distribute the workload across multiple instances and ensures that each instance is utilized to its fullest potential.
In other words, API Gateway provides higher-level features related to API management, while Load Balancer provides lower-level features related to traffic distribution across multiple instances of a microservice.
Now, that you know the basics, let’s see each of them in bit more detail to understand the differences as well as learn when to use them.
By the way, if you are preparing for System design interviews and want to learn System Design in depth then you can also checkout sites like ByteByteGo, DesignGuru, Exponent, Educative , Bugfree.ai, and Udemy which have many great System design courses and if you need free system design courses you can also see the below article.
And, If you like my post, consider subscribing to my newsletter, its FREE and you will not miss any of my post
What is API Gateway Pattern in Microservices?
API Gateway is one of the essential pattern used in microservices architecture that acts as a reverse proxy to route requests from clients to multiple internal services.
It also provides a single entry point for all clients to interact with the system, allowing for better scalability, security, and control over the APIs.
API Gateway handles common tasks such as authentication, rate limiting, and caching, while also abstracting away the complexity of the underlying services.
Thing will be more clear when we go through a real world scenario where API Gateway can be used, so let’s do that.
Let’s assume you have a microservices-based e-commerce application that allows users to browse and purchase products. The application is composed of several microservices, including a product catalog service, a shopping cart service, an order service, and a user service.

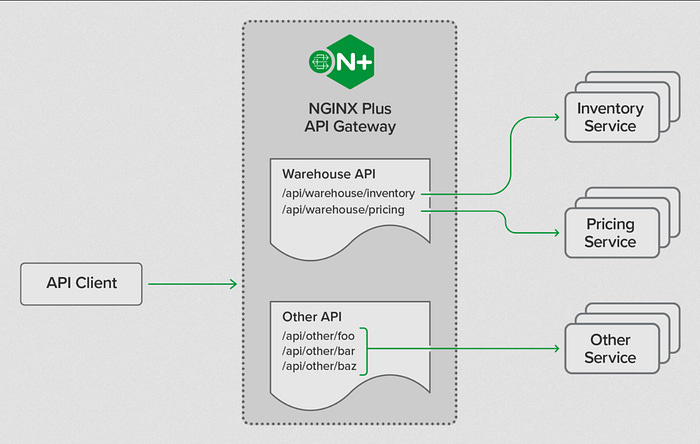

To simplify the interaction between clients and these microservices, you can use an API gateway. The API gateway acts as a single entry point for all client requests and routes them to the appropriate microservice.
For example, when a user wants to view the product catalog, they make a request to the API gateway, which forwards the request to the product catalog service. Similarly, when a user wants to place an order, they make a request to the API gateway, which forwards the request to the order service.
By using an API gateway, you can simplify the client-side code, reduce the number of requests that need to be made, and provide a unified interface for clients to interact with the microservices.
When to use API Gateway?
Now that we know what is API Gateway and what services it provides, it pretty easy to understand when to use it. API Gateway can be used in various scenarios like
Providing a unified entry point for multiple microservices: API Gateway can act as a single entry point for multiple microservices, providing a unified interface to clients.
Implementing security: API Gateway can enforce security policies, such as authentication and authorization, for all the microservices.
Improving performance: API Gateway can cache responses from microservices and reduce the number of requests that reach the back-end.
Simplifying the client: API Gateway can abstract the complexity of the underlying microservices and provide a simpler interface for clients to interact with.
Versioning and routing: API Gateway can route requests to different versions of the same microservice or different microservices based on the request parameters.
So, you can see that it’s doing a lot more than just forwarding your request to Microservices and that’s probably the main difference between API Gateway and Load balancer.

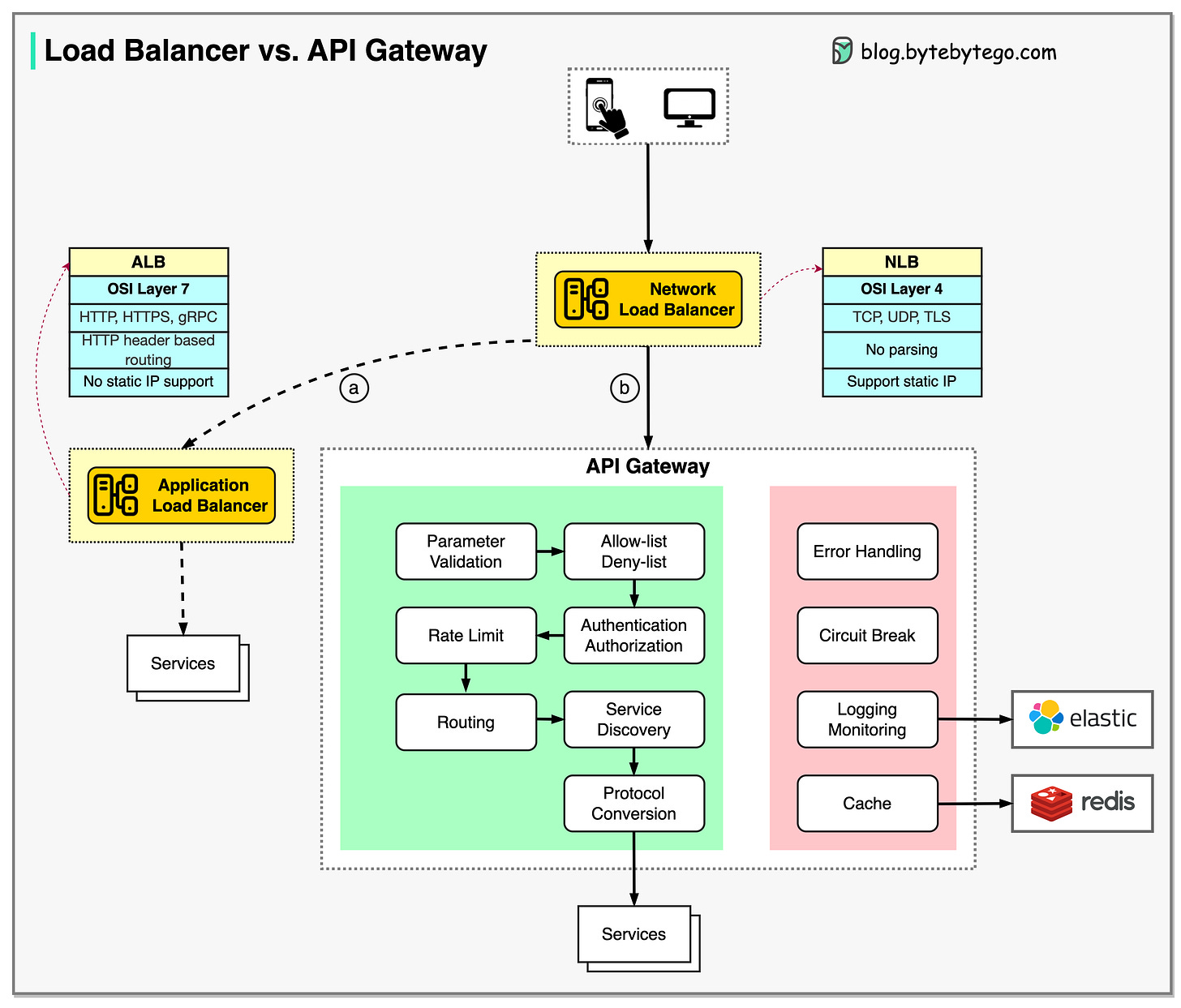

Here is also a nice diagram from ByteByteGo which shows how you can use both Load Balancer and API Gateway in your application.
What is Load Balancer? What Problem it Solve?
A load balancer is a component that distributes incoming network traffic across multiple servers or nodes in a server cluster, not just in Microservices architecture but any architecture.
It helps to improve the performance, scalability, and availability of applications and services by evenly distributing the workload among the servers.
In this way, a load balancer ensures that no single server is overloaded with traffic while others remain idle, which can lead to better resource utilization and increased reliability of the overall system.

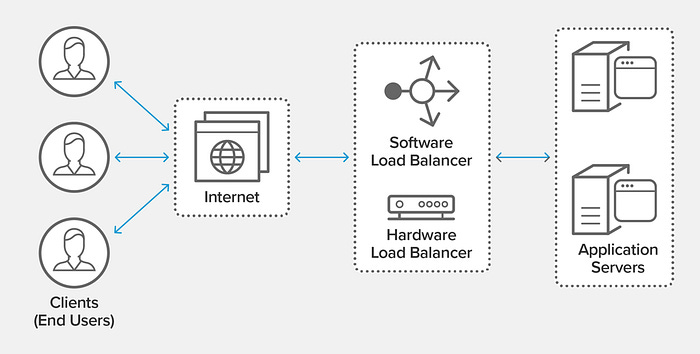

Here is a nice diagram which shows how load-balancer works and how it can be used at both hardware and software level as well:
When to use load balancer in Microservices?
As I said, Load balancers are primarily used in microservices architecture to distribute incoming network traffic across multiple instances of the same service.
Load balancers can help to increase the availability and scalability of the application and that’s why they have been around for quite sometime even before the Microservices architecture.
Load balancers are also used when the traffic to the application becomes too high and a single instance of the service is unable to handle the load. Load balancers are also used when the application is deployed across multiple servers or data centers.
Pros and Cons of Load Balancer in Microservices
Now, let’s see pros and cons of using Load balancers in Microservices architecture:
Pros:
Improved performance and scalability: Load balancers distribute traffic evenly across multiple servers, reducing the load on each server and ensuring that no server is overwhelmed.
High availability and fault tolerance: Load balancers can automatically redirect traffic to other healthy servers if one server fails, ensuring that services remain available even if some servers go down.
Flexibility and customization: Load balancers can be customized with different algorithms and rules to handle traffic in a way that best suits the specific needs of the system.
Cons:
Complexity and cost: Load balancers can add complexity and cost to the system, as they require additional hardware or software to manage and maintain.
Single point of failure: If the load balancer itself fails, the entire system may become unavailable.
Increased latency: Depending on the setup, load balancers can add some latency to the system by adding an additional hop between clients and servers.
Difference between Load Balancers and API Gateway in Microservice Architecture
here are 10 differences between API gateway and load balancer in point-by-point format:
1. Purpose
The primary purpose of an API gateway is to provide a unified API for microservices, while the primary purpose of a load balancer is to distribute traffic evenly across multiple servers.
2. Functionality
An API gateway can perform several functions, such as routing, security, load balancing, and API management, while a load balancer only handles traffic distribution.
3. Routing
An API gateway routes requests based on a predefined set of rules, while a load balancer routes requests based on predefined algorithms, such as round-robin or least connections.
4. Protocol Support
An API gateway typically supports multiple protocols, such as HTTP, WebSocket, and MQTT, while a load balancer only supports protocols at the transport layer, such as TCP and UDP.
5. Security
An API gateway provides features such as authentication, authorization, and SSL termination, while a load balancer only provides basic security features such as SSL offloading.
6. Caching
An API gateway can cache responses from microservices to improve performance, while a load balancer does not offer caching capabilities.
