If you’ve ever opened an app and watched it load in milliseconds, you’ve already experienced system design in action.
Behind that simple tap lies a chain of carefully designed components:
An API receives your request.
A load balancer routes it.
A database stores the data.
A cache speeds things up.
A CDN serves static content.
Production infrastructure keeps everything alive 24/7.
Yet many engineers prepare for interviews by memorizing definitions instead of understanding how these pieces actually work together.
System design isn’t about drawing random boxes and arrows.
It’s about understanding trade-offs.
It’s about scalability.
It’s about reliability under failure.
It’s about building systems that survive real-world traffic.

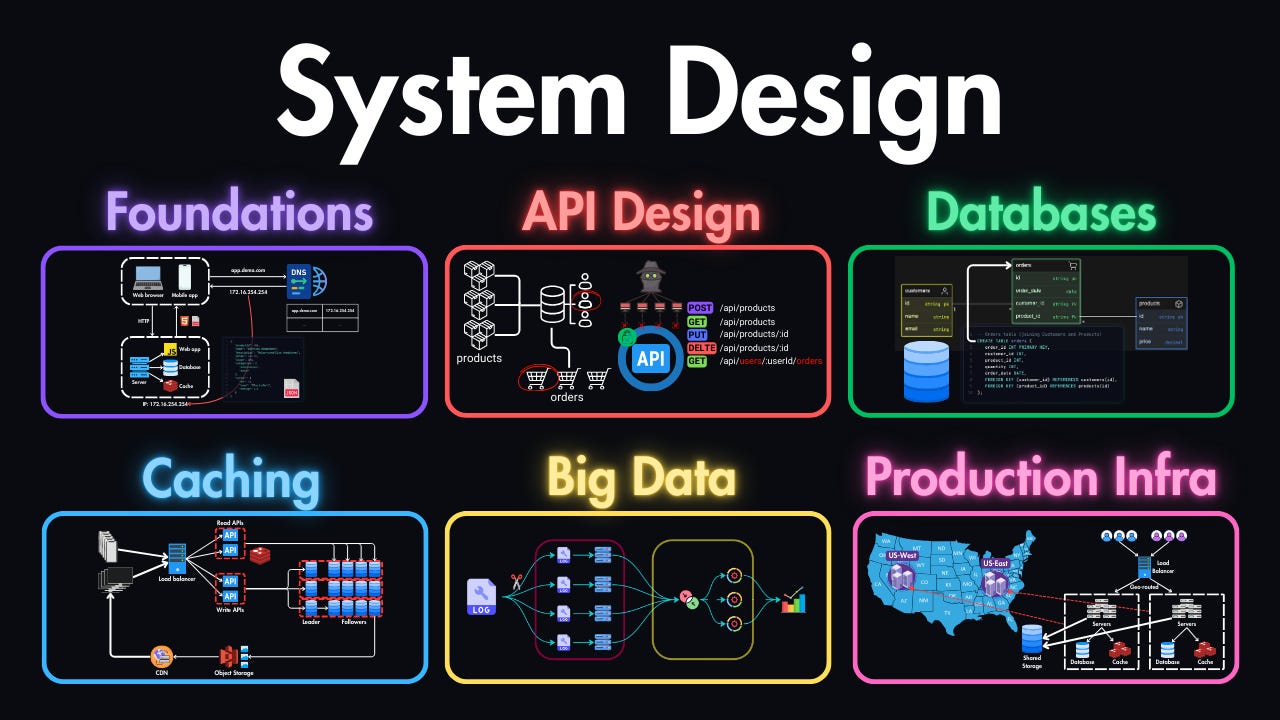

In this guide Hayk , Senior Software engineer, System Design expert, YouTuber and instructor of popular System Design course - System Design for Beginners: Build Scalable Backend Systems on Udemy, we’ll break down the foundational building blocks of modern backend systems:
What APIs really do beyond “handling requests”
How databases are chosen and structured
Why caching is both powerful and dangerous
How CDNs reduce latency globally
What load balancers actually balance
And what it truly means to run something in production
Whether you’re preparing for a system design interview or trying to strengthen your backend fundamentals, this article will give you the mental model you need to connect the dots.
Let’s start from the basics — and build upward. Over to Hayk to take you through rest of the article.
By the way, If you’re preparing for System Design Interviews or want to move from being a developer to thinking like an architect, mastering these concepts is essential. I highly recommend ByteByteGo — one of the best platforms that explains these distributed system patterns visually and intuitively.
Their diagrams and case studies (like how browsers fetch content, how CDNs reduce latency, and how DNS propagation works) make complex concepts easy to grasp.
ByteByteGo is currently offering up to 50% OFF on their annual plan — a perfect time to start your system design learning journey.
Most developers are comfortable adding features to an existing codebase. They can follow requirements, write clean functions and ship code that works.
But if you ask them to sit down with a blank whiteboard and design an architecture from scratch, they often hit a wall.
This specific skill is what separates mid-level developers from seniors.
In the high-stakes world of software engineering, companies do not pay high salaries just for your ability to write loops.
They pay for your architectural decisions. They pay for your ability to navigate trade-offs between performance, cost and reliability.
If you want to move into a senior role or pass a high-level system design interview, you need to understand how the pieces of the puzzle fit together.
Here is how you think about scale.
The Myth of the Single Server

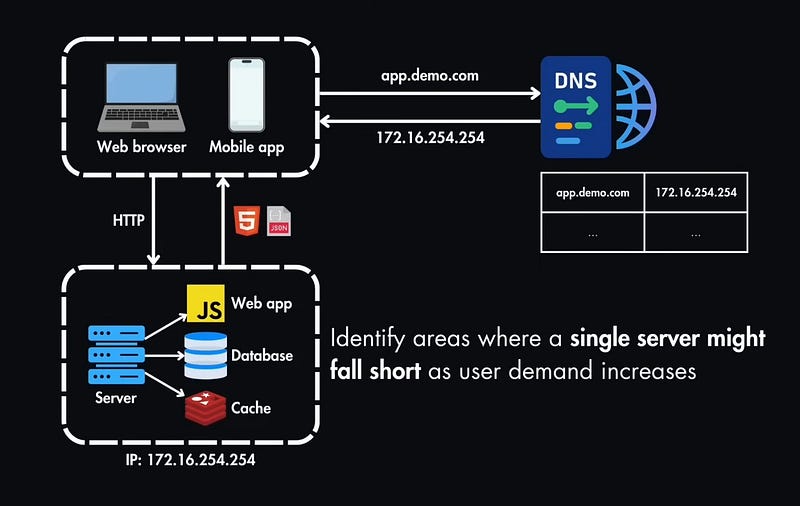

Every massive application starts small. In the beginning, you might have your web app, your database, and your cache all sitting on one machine. A user enters your domain, the DNS maps that name to your IP address, and your server sends back a response.
This works for a side project, but it is a disaster for a business. A single server is a “Single Point of Failure.” If that one machine has a hardware issue or a traffic spike, your entire business goes dark. To move beyond this, you have to embrace the art of scaling.
Choosing Your Scaling Strategy
When your server hits its limit, you have two paths to take.
Vertical Scaling (Scaling Up): This means adding more power to your current machine. You give it a faster CPU or more RAM. It is the easiest way to scale because it requires zero code changes.
However, it has a hard ceiling. You eventually reach a point where no matter how much money you throw at the hardware, the machine cannot get any faster.
Horizontal Scaling (Scaling Out): This is the senior approach. Instead of one giant machine, you use ten small ones. This provides true fault tolerance. If one server dies, the other nine keep the system alive. This strategy is how companies like Netflix and Amazon handle millions of concurrent users.
Load Balancing
Once you have multiple servers, you need a way to distribute the work. This is the job of the Load Balancer. It acts as a traffic cop, sitting in front of your servers and deciding where each request should go.
Seniors do not just “use” a load balancer; they understand the strategies behind them:
Round Robin: Simple rotation. Every server gets an equal turn.
Least Connections: Traffic goes to whoever is least busy. This is better for long-running tasks.
IP Hash: This ensures a specific user always hits the same server. This is crucial if you are storing session data locally on the server.
Consistent Hashing: This is the advanced method. It allows you to add or remove servers with minimal disruption to the existing traffic flow.
Database Scaling
In almost every system, the database is the first thing to break. While your API servers are “stateless” and easy to multiply, your database holds “state,” which makes it much harder to scale.
To handle this, senior engineers implement Read Replicas. You have one “Primary” database for writing data and several “Secondary” databases for reading data.
Since most apps are read-heavy (think of how many more people view a post than write one), this drastically improves performance.
For even larger scale, you look into Sharding, which is the process of breaking your data into smaller chunks and spreading them across different database instances.
Performance via Caching and CDNs
You should never ask your database for the same piece of information twice if it hasn’t changed. This is where caching comes in.
Application Caching: Use tools like Redis to store frequently accessed data in memory. Accessing RAM is thousands of times faster than hitting a disk.
Content Delivery Networks (CDNs): For static assets like images, CSS, and videos, you use a CDN. This places your files on servers physically closer to the user. If a user is in London, they shouldn’t have to wait for a server in New York to send them a header image.
API Communication Styles
How your services talk to each other defines the speed of your development.
REST: The reliable standard. It is great for public APIs and general-purpose web traffic.
GraphQL: The choice for complex front-ends. It allows the client to request exactly the data they need, which prevents over-fetching and saves bandwidth.
gRPC: The high-performance option. It uses binary data instead of text, making it incredibly fast for internal communication between microservices.
The Production Security Checklist
A system that isn’t secure isn’t a professional system. Before shipping to production, senior engineers ensure these layers are in place:
Rate Limiting: Protect your API from being overwhelmed by bots or malicious actors.
SQL Injection Prevention: Always use parameterized queries. Never trust user input.
Firewalls and VPNs: Keep your internal databases and services off the public internet. If it doesn’t need to be public, hide it.
XSS and CSRF Protection: Sanitize your inputs and use security tokens to ensure requests are legitimate.
From Coder to Architect
Understanding these concepts is the difference between being a worker and being a leader. When you can talk about load balancing strategies, database sharding, and security protocols, you stop being seen as “the person who writes the code” and start being seen as the person who builds the business.
If you are tired of just building small features and you want to start designing the massive systems that run the modern web, you need to master the infrastructure.
