Hello guys, Kubernetes is everywhere. Whether you're deploying microservices, running AI workloads, or managing cloud-native applications, chances are Kubernetes is running behind the scenes.
But many developers learn individual components like Pods, Deployments, Services, and Ingress without understanding why Kubernetes was created in the first place or how all these pieces fit together.
In this visual guide, our guest author, Tech Fusionist will tell you everything about K8, a developer needs to know. We'll start with the problem Kubernetes solves and then walk through each core component step by step, so you can finally see the complete picture instead of isolated concepts.
Kubernetes often feels overwhelming at first - not because it’s poorly designed, but because most explanations jump straight into YAML and commands.
This article takes a visual + conceptual approach, inspired by my new “the Kubernetes Visual Guide by Tech Fusionist”, to explain why Kubernetes exists, how it works internally, and how all major components fit together.
If you understand the mental model, Kubernetes becomes logical - even elegant.
1. The Container Revolution: How We Got Here?
Modern application deployment evolved through clear stages:
Monolith → Virtual Machines → Containers → Orchestration
Each stage solved one major problem but introduced a new one. Containers finally gave us speed, portability, and consistency - but managing them at scale created a new challenge.
Key insight:
Containers solved packaging. Kubernetes solved operations.

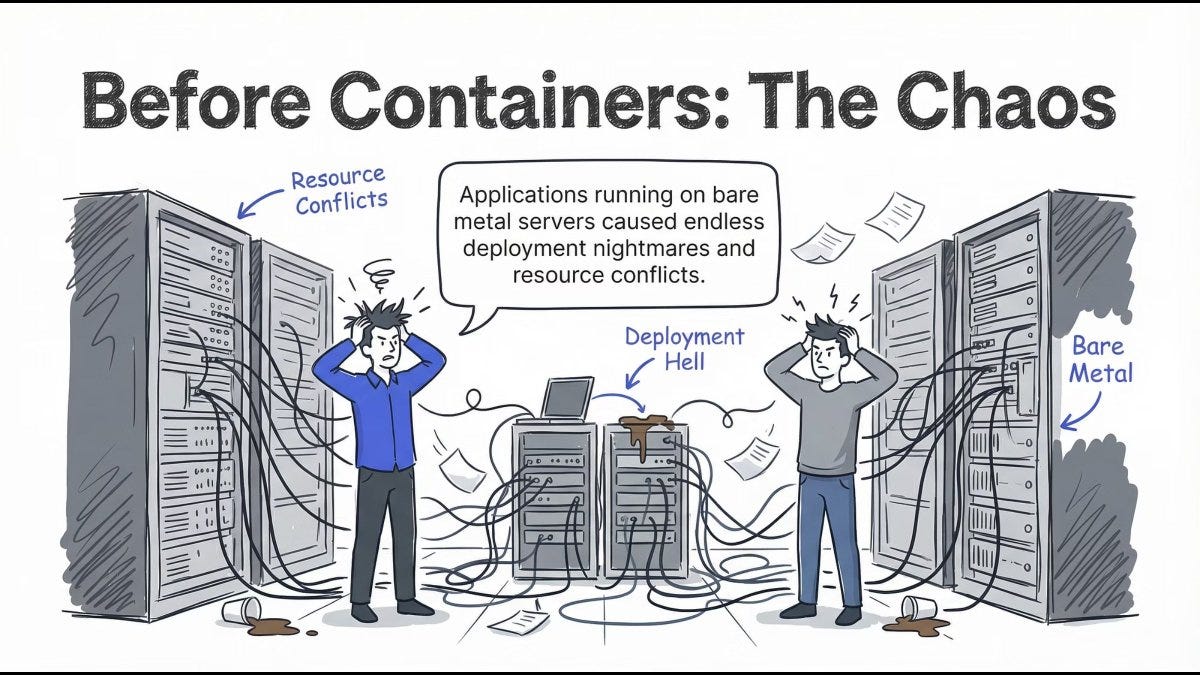

2. Before Containers: Deployment Chaos
Running applications directly on servers led to:
Resource conflicts
Environment mismatches
Deployment failures
Scaling nightmares
Every release felt risky. Stability depended on luck more than design.
Lesson:
Infrastructure without isolation never scales cleanly.

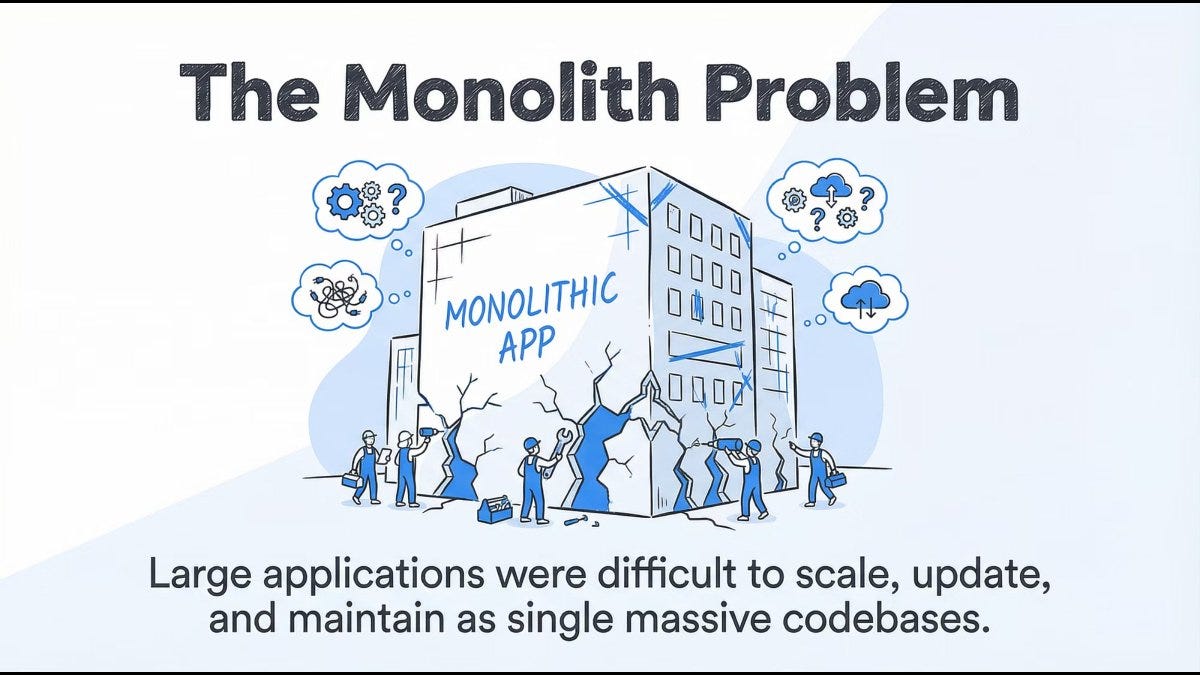

3. The Monolith Problem
Traditional monolithic applications were:
Large and tightly coupled
Hard to scale independently
Risky to update
Expensive to maintain
A single bug could bring the entire system down.
Lesson:
Big codebases don’t fail fast - they fail expensively.

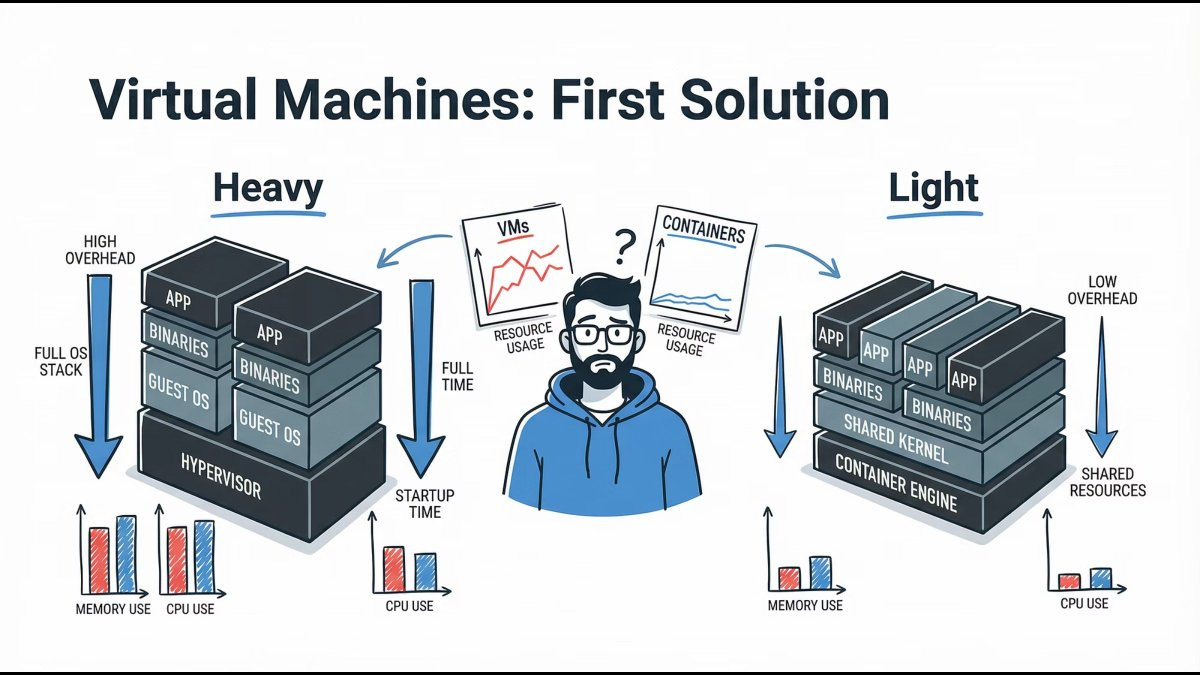

4. Virtual Machines: The First Real Solution
Virtual Machines introduced isolation and stability, but at a cost:
Heavy OS overhead
Slow boot times
Inefficient resource usage
They were powerful, but not agile.
Lesson:
VMs brought isolation, not velocity.

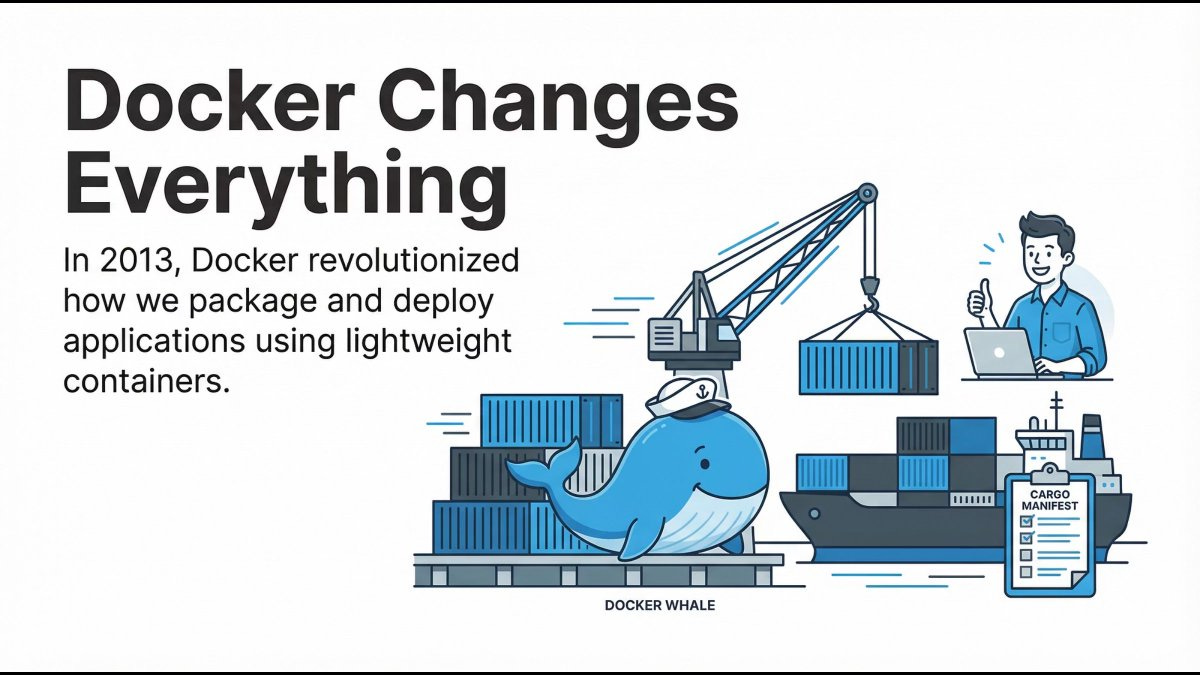

5. Docker Changed Everything
Docker revolutionized application delivery by introducing:
ghtweight contain
Liers
Fast startup times
Application + dependencies bundled together
Developers finally achieved true environment consistency.
Lesson:
“It works on my machine” stopped being an excuse.

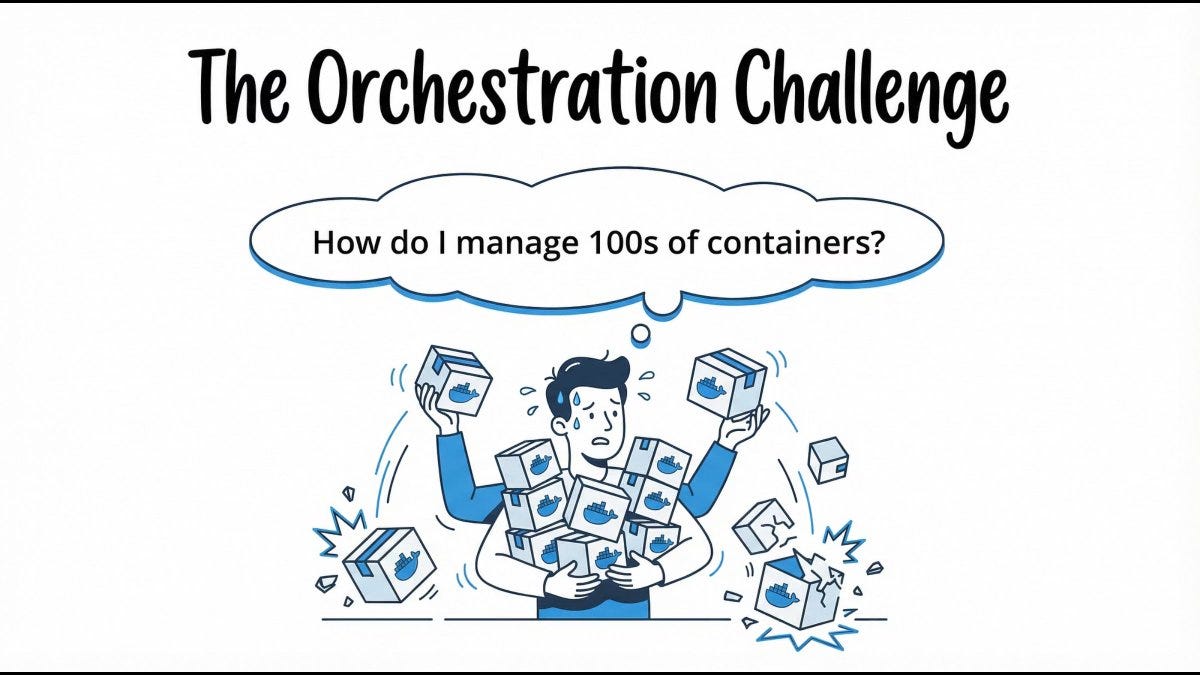

6. Containers Are Great… Until Scale
Containers solved packaging - but at scale, teams asked:
How do we auto-scale containers?
What happens when containers crash?
How do we manage networking?
How do we deploy with zero downtime?
This is where Kubernetes enters.
Lesson:
Containers need a conductor.
7. Enter Kubernetes: The Captain of Containers
Kubernetes is a container orchestration platform that manages:
Deployment
Scaling
Networking
Self-healing
Configuration
It doesn’t replace Docker - it coordinates containers across infrastructure.
Mental model:
Kubernetes is the operating system for distributed applications.

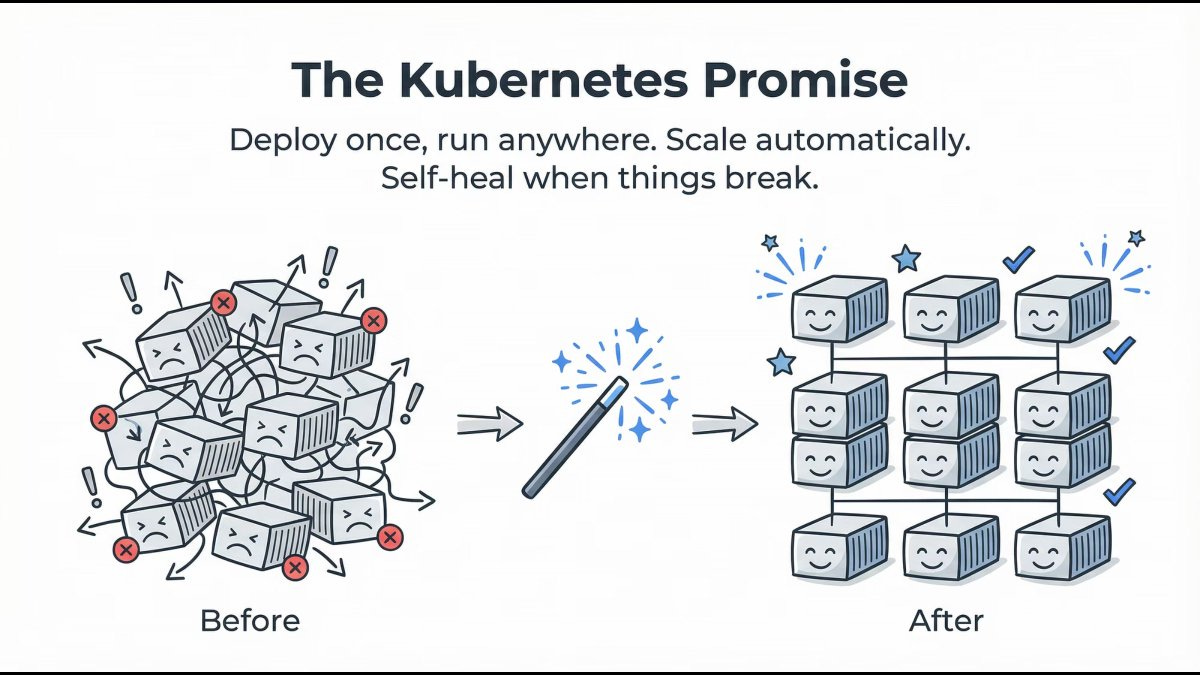

8. What Kubernetes Really Promises?
Kubernetes delivers on four core promises:
Deploy once, run anywhere
Automatic scaling
Self-healing workloads
Declarative configuration
You describe the desired state. Kubernetes continuously works to maintain it.
Lesson:
You declare intent. Kubernetes enforces reality.
Kubernetes Architecture: Master & Worker Nodes (How It All Works?)
At a high level, a Kubernetes cluster is split into two parts:
Control Plane – Makes decisions
Worker Nodes – Run applications
This separation is what enables Kubernetes to scale and self-heal.
